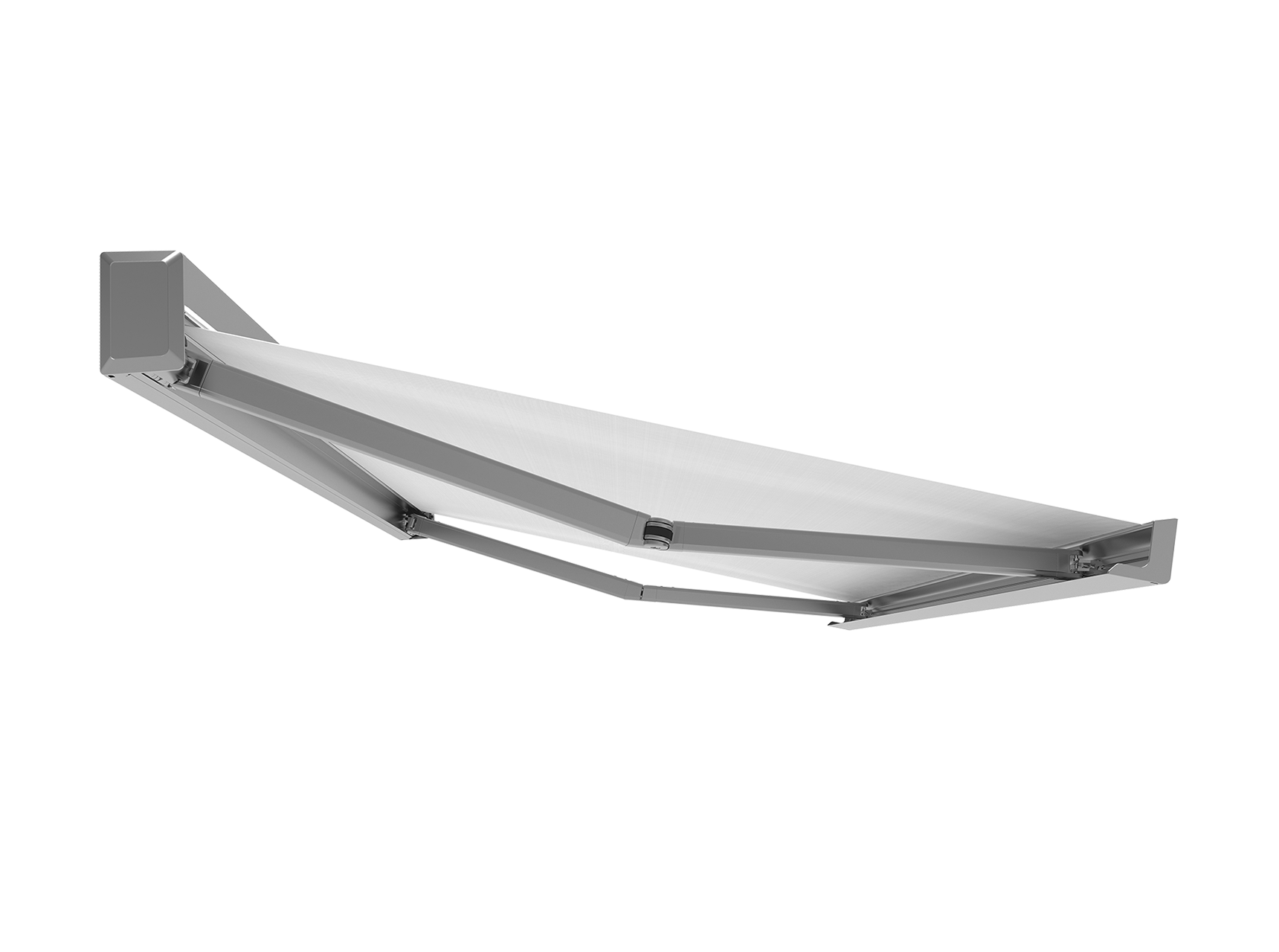

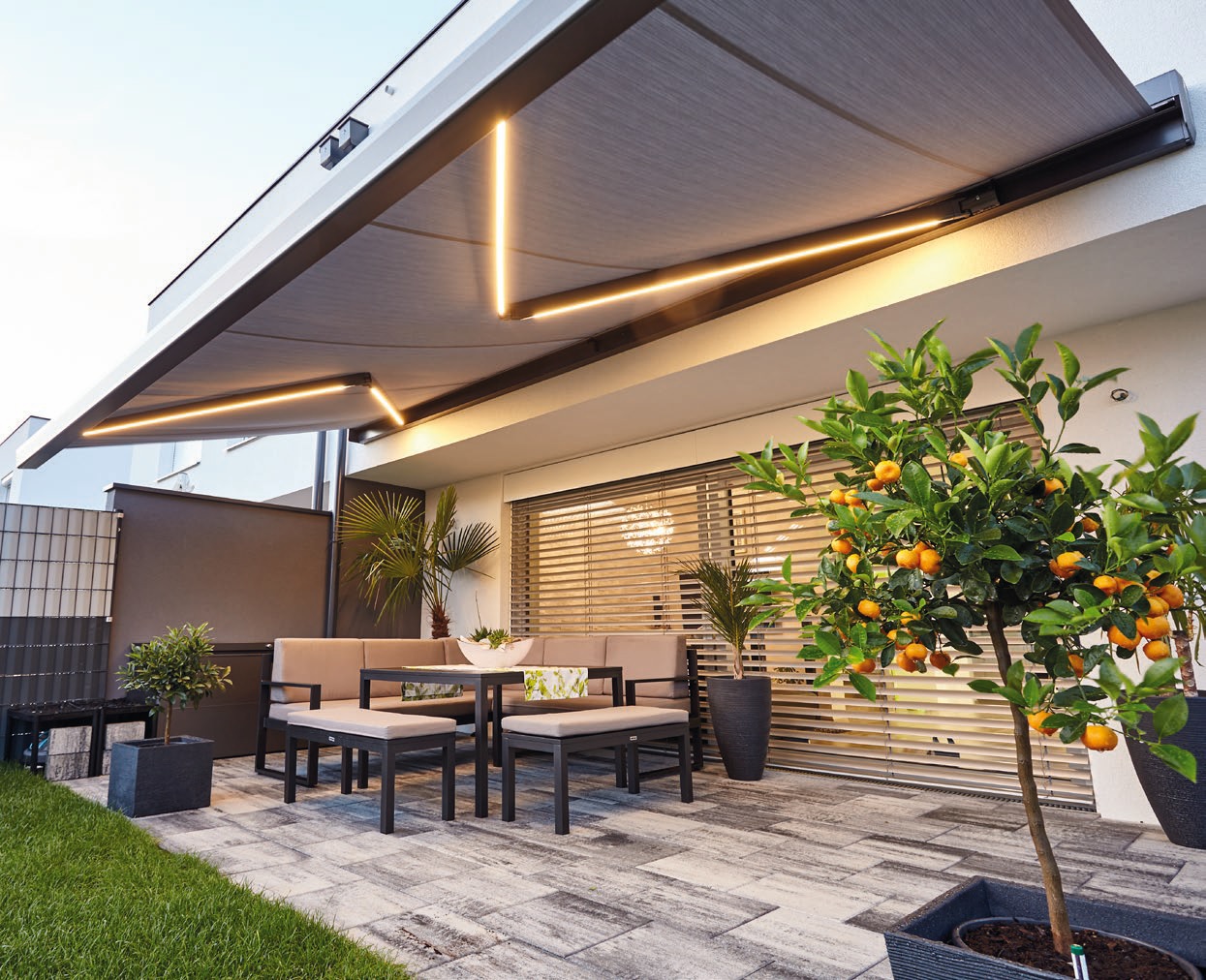

An elegant and at the same time extravagant solution for shading, simple, shapely and absolutely functional is the Pan cassette awning from Hella. When retracted, the membrane winds upwards in the cassette and sinks completely into the vertically installed, plain lower box. For purists in architecture and lovers of perfection, Pan is the tailor-made sun and weather protection that, thanks to LEDs that can be integrated flush into the articulated arms, can even become a stylish source of light in the outdoor area if desired.
Anwing Pan in closed position

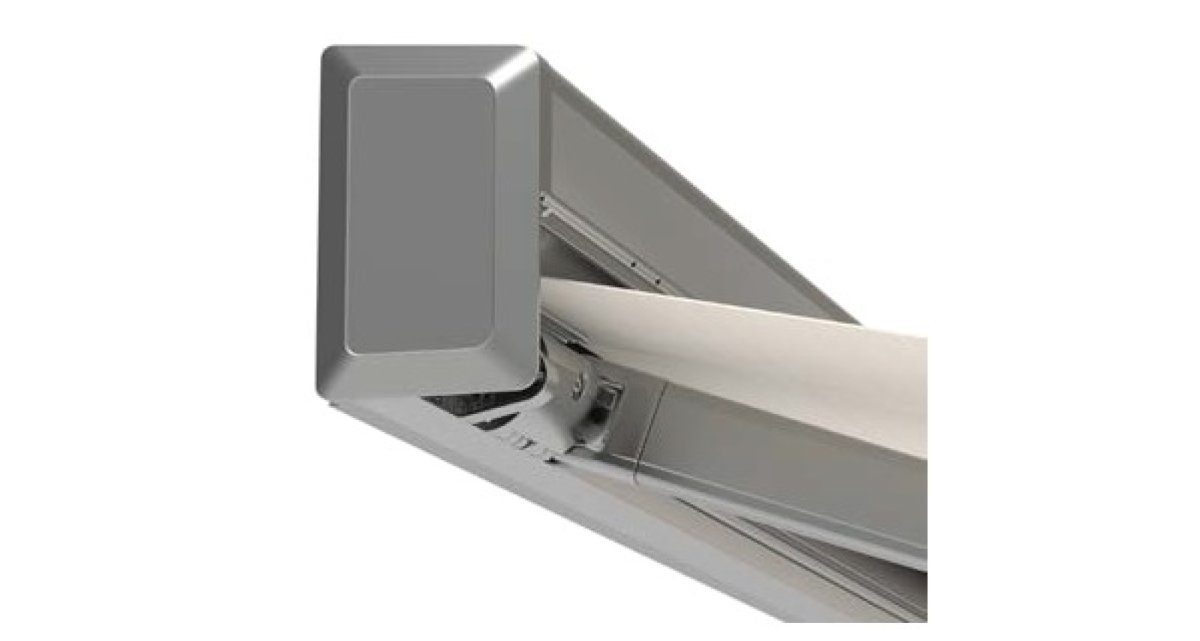

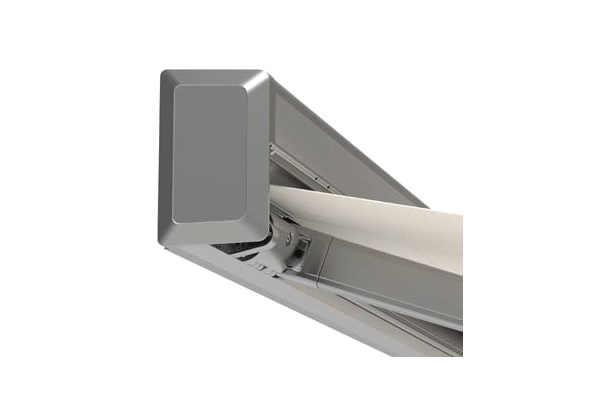

Anwing Pan in side view

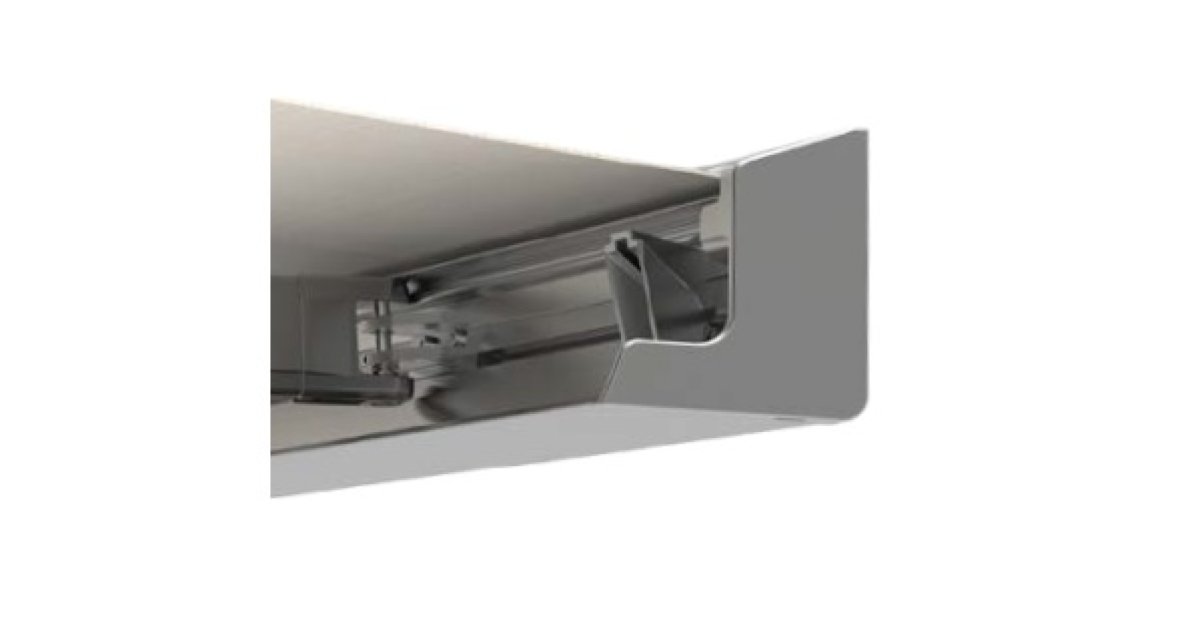

Anwing Pan in front profile

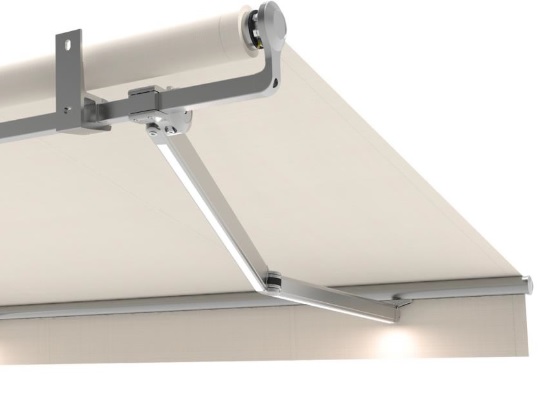

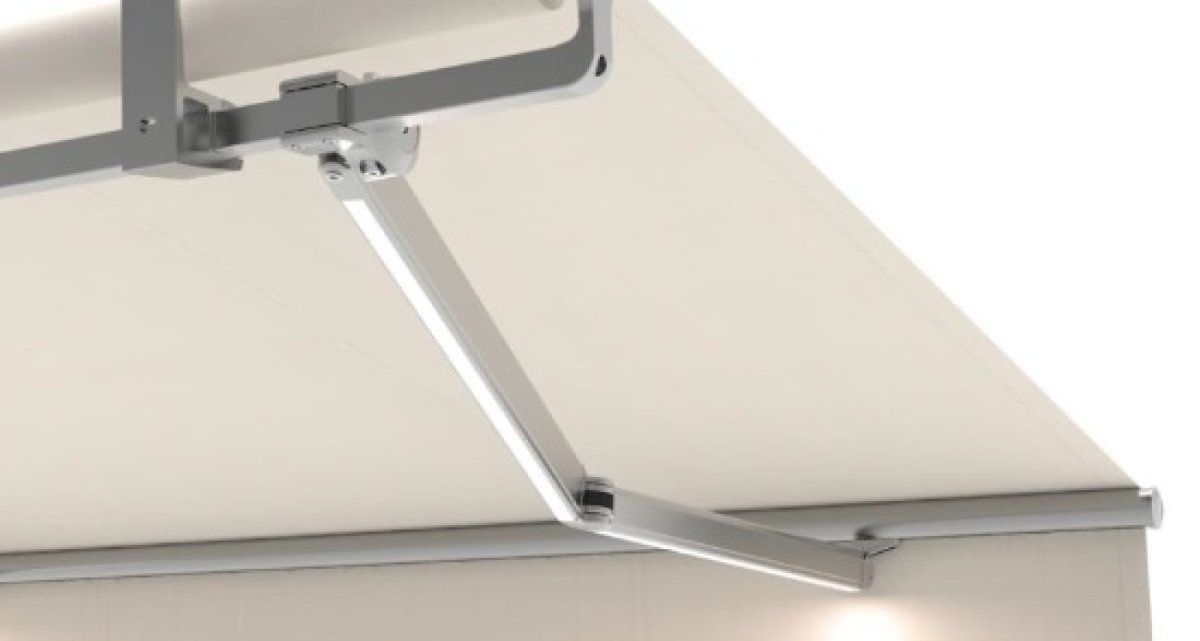

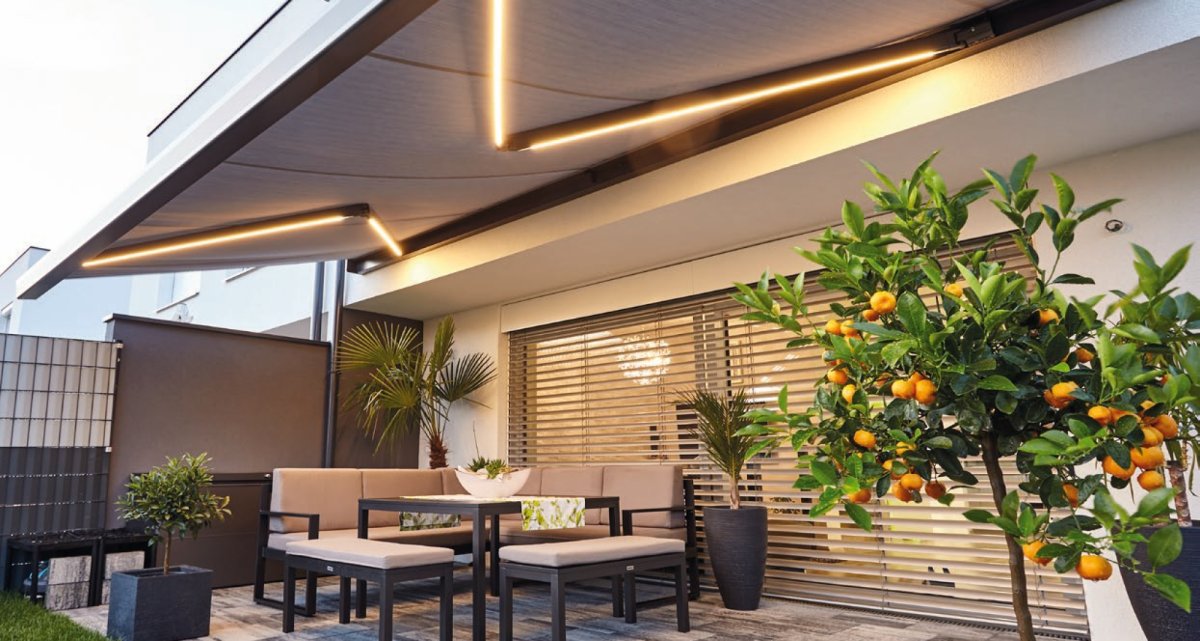

LED lighting: The warm white atmospheric light directly illuminates the area underneath the awning. The high-quality LED strips are dimmable, resistant, energy-efficient and encased in an opal-white plastic strip. The lighting is controlled by radio wall switch or radio remote control. The cabling is invisibly housed in the arms and in the support tube of the awning.

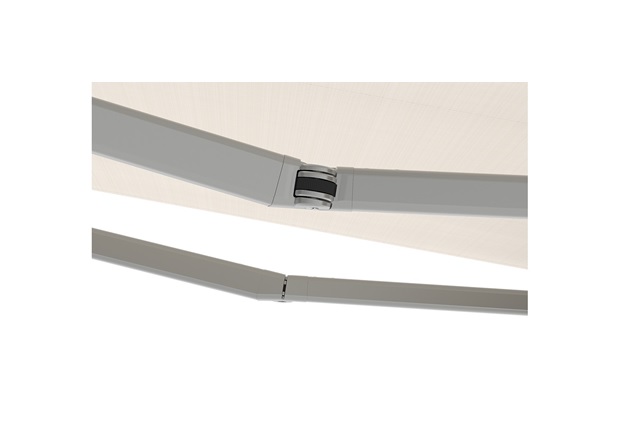

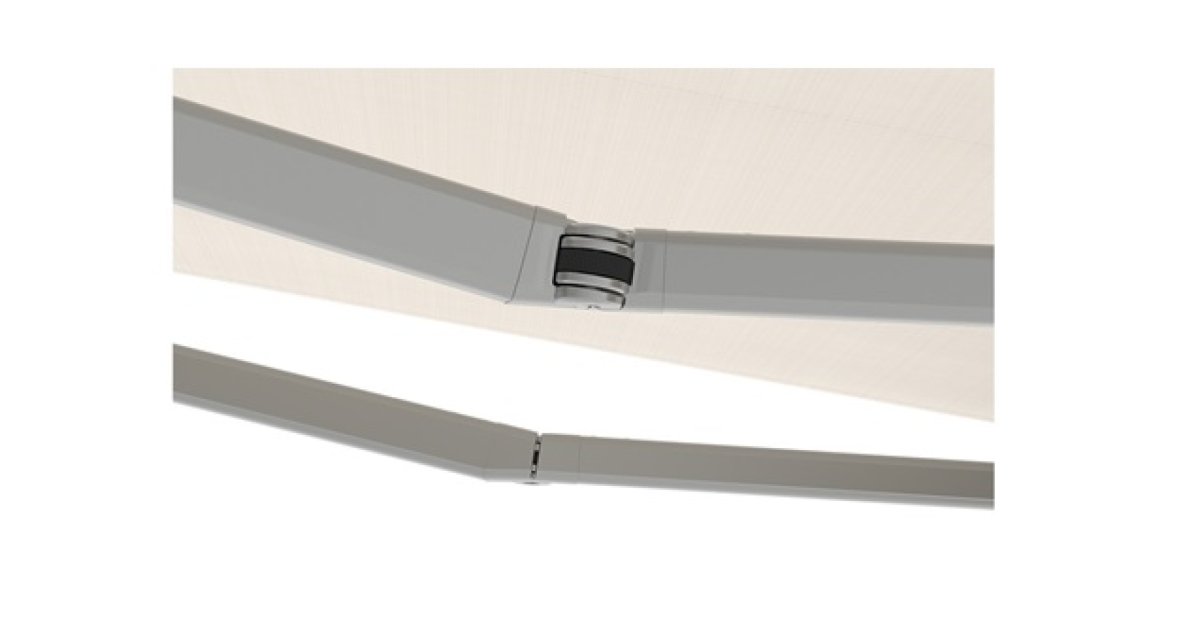

The concealed Dyneema® tension band transmits the spring force to the folding arm and awning cover by means of noise-damped special springs: The Dyneema® fibre is very durable and has a high resistance to abrasion, moisture, UV rays and chemicals. Thus the Dyneema® fibre is related to the mass:
- 15 x more tensile than steel- 60% stronger than carbon and glass fibre- 5 x more tensile strength than polyamide and polyester filaments

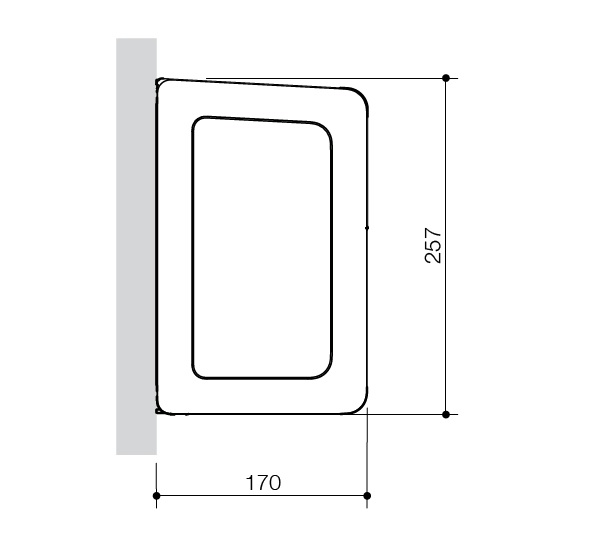

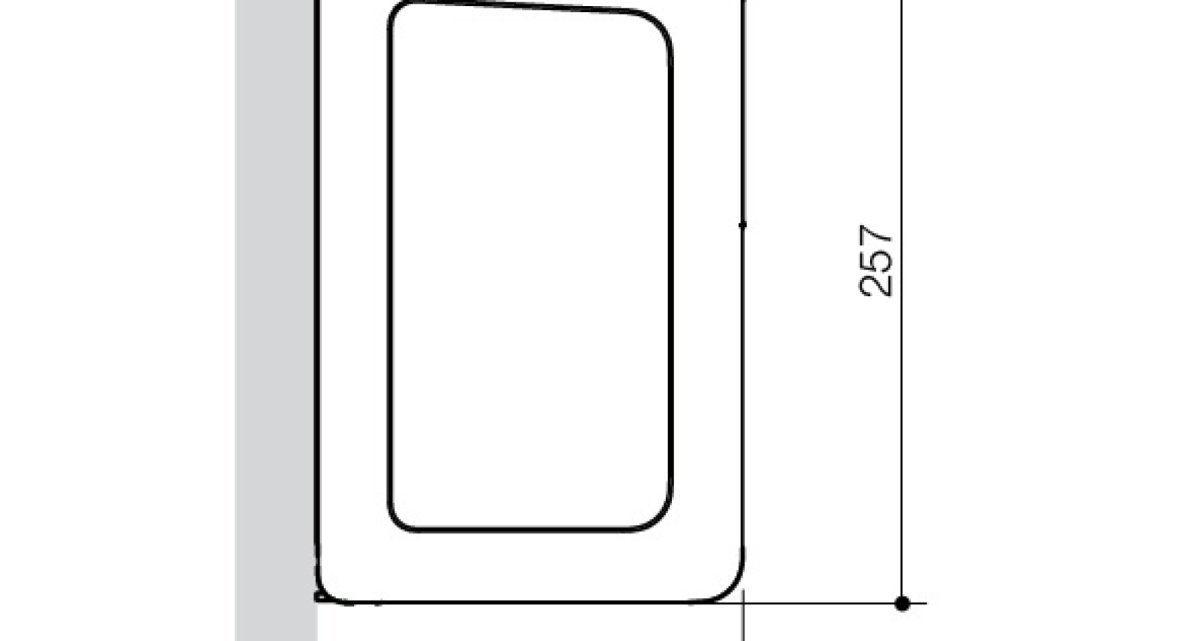

Dimensions box
Bracket for the awning

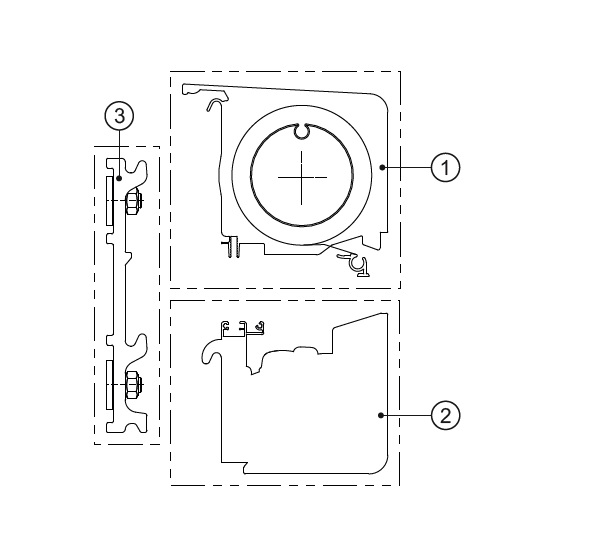

Modular Box in two parts
1500
2000
2500
3000
3500
4000
maximum width
single system
7000
minimum width
single system motor (2 arms)
2225
2725
3225
3725
4225
4725
