Bahama Jumbrella │ Gastro Umbrella


The answer to the most diverse requirements bears the melodious name Jumbrella. The product range extends from small and handy variants in the form of the Easy and Event models to the large Jumbrella XL, Largo and Magnum types. The large umbrella offers extensive configuration options and a range of special features in the additional equipment. Take advantage of the possibility to individually adapt the umbrella variants to your technical requirements.


Gastro Umbrella Jumbrella



The stable and reliable gastro umbrella from Bahama

  • Over 25 different model sizes in 3 shapes to choose from
  • Extensive additional equipment with great features
  • Maintenance-free servomechanism for fail-safe opening and closing
  • UV protection of the highest level with UPF 50+
  • A variety of ground supports for the most diverse ground conditions
  • Individual print design on textile membrane and/or valance
  • Special designs for frame and covering possible
  • Fast and long-term spare parts supply

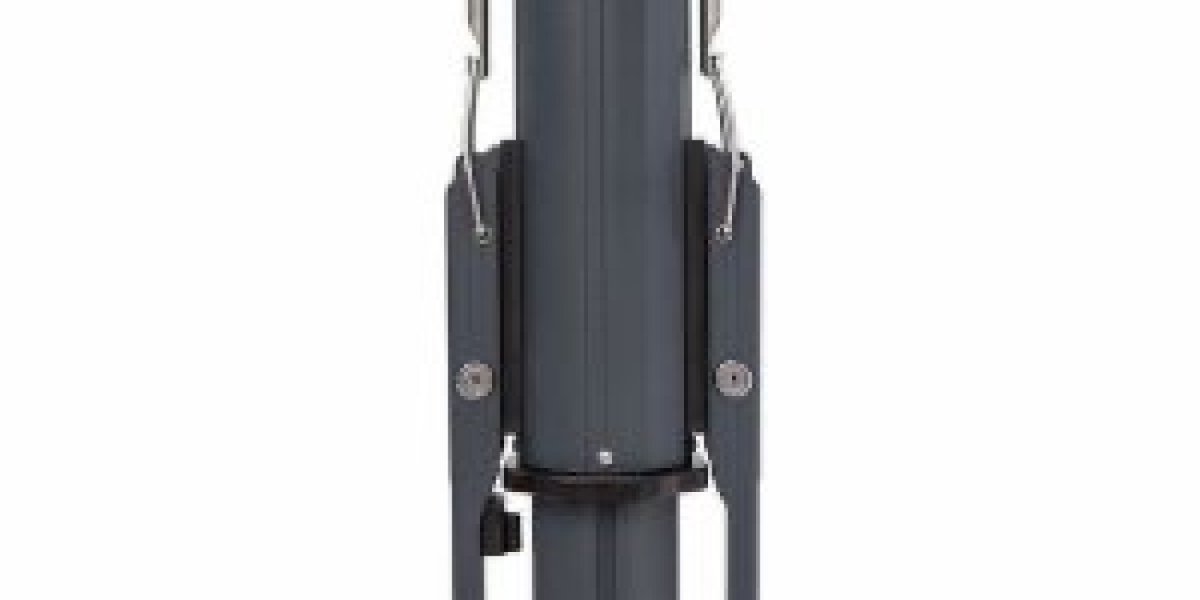

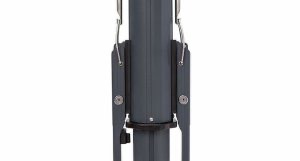

The convenient operation by lever mechanism enables comfortable handling without great effort

All controls are made of high-quality and weatherproof stainless steel or aluminium

The solid umbrella mast with particularly stable bracing supports even large umbrella formats permanently and reliably


The frame

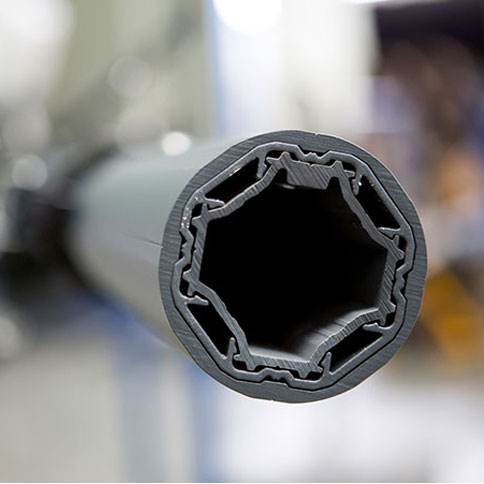

Mast: Double-walled profiled aluminium column with 80 mm diameter and 2.5 mm wall thickness

Struts: Welded aluminium rectangular hollow profile with rounded edges I Spokes and uprights individually replaceable.


The fabric



Bahama betex® 05:

The exclusive Bahama fabric combines a whole range of technical functions in addition to its high-quality look. Made of 100% polyester with a basis weight of 200 g/m2, the SPF 50+ membrane reliably protects against harmful UV radiation. At the same time, you can rely on high light resistance and waterproofness. The cover is supplied in one piece and can also be easily replaced and washed. There are 25 modern colour variations to choose from, which can be individually personalised using modern printing technology.

Serge Ferrari Precontraint®:

The worldwide patented Précontraint technology offers the highest form and surface stability, high durability, a low weight as well as extreme durability. The membrane made of polyester fabric with 550 Dtex and a waterproof PVC coating is ideal for year-round outdoor use. Here, too, there is a choice of 25 tasteful colour variants, which can be personalised using the latest printing technology.


Mounting on the ground



Umbrella stand: The mounting base at the foot of the umbrella pole can be firmly anchored in the ground or mounted on top. Fixing materials for the corresponding ground conditions are not included in the scope of delivery.



Ground socket: The ground socket can be concreted into the ground independently of the mounting base and even offers a tilting device for particularly large umbrella dimensions, which facilitates handling.


LED Lighting & Radiant Heaters



LED lighting:

The day does not have to end when dusk falls. Lighting integrated into the shade conjures up an atmospheric ambience and is particularly energy-efficient thanks to LED technology. All cables remain invisible to guests inside the frame. You can choose between LED technology with a light temperature of 2700 K and the option of individual colour design at the touch of a button using RGB LED strips.

Radiant heater:

A radiant heater integrated into the shade allows your guests to enjoy their gastronomic offerings even at low temperatures in the outdoor area. The infrared technology is based on the latest development and is extremely durable thanks to the Ultra Low Glow heating tubes. The supplied remote control allows regulation in 6 levels. When the shade is closed, the heater can remain invisible inside.


Further additional options



Benefit from the numerous technical features, such as the clever anti-theft protection, a built-in loudspeaker as a mood generator, the TV holder that enables public viewing directly at the table or the integrable WLAN terminal as an exclusive hotspot for your guests. In addition, the advertising effect can be unobtrusively increased by printing logos, emblems or lettering. The textile composite gutter, which catches falling leaves and bird droppings and safely drains rainwater, is particularly innovative.

Volant

Logo print

Textile composite gutter

Protective cover

Side panel

Impact protection

Theft and usage protection

Lighting | LED Lighting

Radiant heater

Loudspeaker

TV

WLAN


Bahama Jumbrella - Abmessungen



Umbrella shape in rectangular:

300 x 150 cm / 400 x 200 cm / 400 x 300 cm / 450 x 300 cm / 450 x 350 cm / 500 x 250 cm / 500 x 300 cm / 500 x 375 cm / 500 x 400 cm / 600 x 300 cm / 600 x 400 cm / 600 x 450 cm

Umbrella shape in square:

300 x 300 cm / 350 x 350 cm / 400 x 400 cm / 450 x 450 cm / 500 x 500 cm

Umbrella shape in round:

Ø 300 cm / Ø 350 cm / Ø 400 cm / Ø 450 cm / Ø 500 cm / Ø 560 cm / Ø 630cm / Ø 700 cm

Bahama Jumbrella XL - Measurements



Umbrella shape in rectangular:

600 x 514 cm / 700 x 500 cm / 700 x 600 cm

Umbrella shape in square:

500 x 500 cm / 550 x 550 cm / 600 x 600 cm / 700 x 700 cm

Umbrella shape in round:

Ø 700 cm

Jumbrella parasol - Request your sunshade project now!
